Quick Details
- Place of Origin: Guangdong, China, Made in China
- Brand Name: Julixing
- Model Number: LX-UL498
- Certificate: Include ISO 17025 CNAS & ILAC Test Report
- Types of companies: China Wholesale
- MOQ: 1
- Packing: Export standard packing
- Manufacturers: HK LEE HING INDUSTRY CO., LIMITED
- Trading Currencies: USD, GBP, EUR, CNY, HKD
- Product Type: Testing Equipment
- Incoterms: DAP, CIF
- Ship Via: By Sea, By Air or DHL.
Packaging & Delivery
| Packaging Details | Flat packing. |
|---|---|
| Port | HongKong |

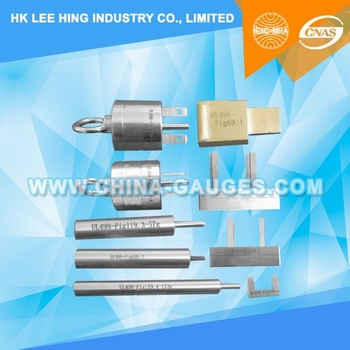

UL 498 : 2012 Plugs and Receptacles Gauges
1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.
3.Specifications:
| Item | Figure No. | Describe | Quantity |
| 1 | UL498-2012 Figure 9.1 | Articulate probe with web stop | 1 |
| 2 | UL498-2012 Figure 10.1 | Probe | 1 |
| 3 | UL498-2012 Figure 31.1 | Flat probe | 1 |
| 4 | UL498-2012 Figure 73.1 | Reference plug | 1 |
| 5 | UL498-2012 Figure 73.2 | Typical test apparatus | 1 |
| 6 | UL498-2012 Figure 98.1 | Improper insertion test blades | 2 |
| 7 | UL498-2012 Figure 109.1 | Test plug | 2 |
| 8 | UL498-2012 Figure 109.2 | Test blade | 1 |
| 9 | UL498-2012 Figure 122.1 | Receptacle test fixture | 1 |
| 10 | UL498-2012 Figure 122.3 | Push out tool | 1 |
| 11 | UL498-2012 Figure 122.5 | Bridge | 1 |
| 12 | UL498-2012 Figure 123.1 | Test pin A | 1 |
| 13 | UL498-2012 Figure 123.2 | Test pin B | 1 |
| 14 | UL498-2012 Figure 123.3 | 57g ground pin | 1 |
| 15 | UL498-2012 Figure 123.4 | 113g ground pin | 1 |
| 16 | UL498-2012 Figure 133.2 | No.14AWG test pin | 1 |
| 17 | UL498-2012 Figure 136.1 | Small test probe | 1 |
| 18 | UL498-2012 Figure 165.2 | Fixture for assembly security test | 1 |
| 19 | UL498-2012 Figure SD 5.1 | Standard grounding pin | 1 |
| 20 | UL498-2012 Figure SD 13.1 | Standard grounding pin | 1 |
| 21 | UL498-2012 Figure SD 13.2 | Over size ground pin | 1 |
Company Introduction
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
